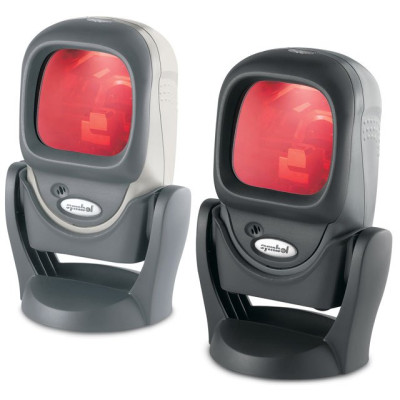

Symbol LS9208 Scanners - Top Seller

Environment:

Applications:

Retail (convenience stores, grocery stores, department stores, specialty hard and soft goods stores)

Customer checkout EAS tag deactivation Back room applications

Pharmacies and drug stores

Customer checkout EAS tag deactivation Prescription verification Distribution and management of controlled substances

Other

Time and attendance Library Office automation

LS9208 Features

Benefits

High-performance, 100-line rastering omnidirectional scan pattern

Increased productivity for novice and expert users resulting in shorter checkout lines, better customer service

Single line scan pattern

Perfect for reading barcode menus and pick lists

Multiple onboard interfaces

Flexible host connectivity protects your hardware investment

Universal cables

Allows for easy replacement and/or upgrades

Small footprint

Fits into the tightest cash/wrap environment

Adjustable, multimount stand

Optimize operator comfort and efficiency

Built-in shock absorption

Protects scan module assembly increasing durability

Flash memory

Facilitates updates/customization of product in the field

Checkpoint Electronic Article Surveillance (EAS) deactivation option

Integrated antenna saves valuable counter space

Supports 123Scan setup utility

Flexible setup using PC download

Reads Reduced Space Symbology® (RSS)

Compatibility with new symbology leverages your hardware investment

Global Trade Item Number (GTIN) Compliant

Capable of decoding and transmitting 14-digit GTINs, where appropriate

Advanced Data Formatting (ADF)

Enables users to modify data prior to sending to host computer, eliminating costly modifications to the host software

LS9208 Physical Characteristics:

Dimensions:

Scanner only: 5.51 in H x 3.49 in W x 2.96 in. D 14 cm H x 8.8 cm W x 7.5 cm D With adjustable stand: 7.18 in H x 4.83 in W x 3.73 in. D/ 18.24 cm H x 12.27 cm W x 9.47 cm D

Weight:

Scanner only: 10.2 oz/320 g With adjustable stand: 21.5 oz/670 g

Power Source:

Power drawn from Host terminal or external power supply; depends on Host type

Voltage:

5.0 VDC +/- 10%

Nominal Current:

390 mA

Power:

2 Watts

Mounting Options:

Adjustable multi-mount stand

Color:

Cash Register White or Twilight Black

LS9208 Performance Characteristics:

Light Source:

650 nm visible laser diode

Roll (Tilt ): ¹

Omnidirectional: 360° Single scan line: +/- 40°

Pitch: ²

Omnidirectional: +/- 50° Single scan line: +/- 60

Skew (Yaw): ³

Omnidirectional: +/- 50° Single scan line: +/- 50°

Print Contrast:

25% minimum reflective difference

Scan Patterns:

Omnidirectional: 20 interlocking lines, 5 scan angles, 4 lines per angle rastering @ 5Hz Single scan line capability

Scan Rate:

Omnidirectional: 1500 scans per second Single scan line: 75 scans per second

Depth of Field:

0-9 in./0-22.9 cm @ 13 mil (100 % UPC/EAN)

Nominal Working Range:

5 mil (38%) 1–2.5 in./2.5–6.4 cm 7.8 mil (60%) 0–6 in./0–15.2 cm 10.4 mil (80%) 0–7.5 in./0–19 cm 13 mil (100%) 0–9 in./0–22.9 cm

Width of Field:

1.6 in./40 mm @ Face 6.7 in./170 mm @ 9 inches

Minimum Resolution:

5 mils

Decode Capability:

UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 128, ISBT 128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, MSI, RSS variants

Interfaces Supported:

USB, RS232, IBM® 468X/9X, Keyboard Wedge, Wand and Synapse™ (allows connectivity to virtually every POS host type)

LS9208 User Environment

Operating Temperature:

32° to 104°F/0° to 40°C

Storage Temperature:

-40° to 158°F/-40° to 70°C

Humidity:

5% to 95% noncondensing

Drop Specifications:

Withstands repeated 4 ft/1.2 m drops to concrete

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor and Sodium Vapor: 450 ft-candles (4,844 LUX) Sunlight: 8,000 ft-candles (86,111 LUX)

EAS Support:

Optional Checkpoint Electronic Article Surveillance EAS

LS9208 Regulatory:

Electrical Safety:

Certified to UL 1950, CSA C22.2 No. 950 EN60825

Laser Safety:

CDRH Class IIa Laser Product IEC 60825 Class 1 Laser Product

EMC:

CISPR B, FCC B
