Enables a variety of in-premise applications to reach their full workflow performance potential.
Featuring a highly adaptable design, the CK3X enables a variety of in-premise applications to reach their full workflow performance potential and improve their operational metrics, simplify IT support and control operating costs.
Withstands multiple 1.5m (5 ft.) drops to concrete across all operating temperature ranges
IP54 seal rating against rain and dust
Choice of integrated high motion tolerance 2D area imager or 2D near/far area imager
High-performance, omnidirectional scanning
3.5 in Transmissive QVGA touchscreen display
Supports industry standard 802.11a/b/g/n and Bluetooth radio for adaptable communications
Industry-leading battery performance will last a full shift and beyond
Equipped with a powerefficient 1GHz multi-engine Texas Instruments processor
256MB RAM and 1GB Flash
Designed to support Vocollect Voice to combine voice-directed workflow with traditional barcode data collection
CK3X, Mobile Computer - Wi-Fi (802.11a/b/g/n) - 2D Imager Barcode scanner (EA30 Scan Engine) - Windows Embedded 6.5 - 256MB RAM/1GB Flash - 1GHz Processor - Alphanumeric Keypad - Bluetooth - Standard Software - Includes Battery - Spare Battery (Part# 318-033-021), single dock (Part# 871-228-201), quad charging dock (Part# 871-230-101), power supply (Part# 851-810-002) and AC power cord (Part# 1-974028-025) sold separately
CK3X, Mobile Computer - Windows Embedded 6.5 - 2D imager - Numeric Function Keypad - Wi-Fi 802.11a/b/g/n - Bluetooth - 1GHz processor - Includes battery and client pack - Spare Battery (Part# 318-033-021), single dock charger (Part# 871-228-201), quad charging dock (Part# 871-230-101), power supply (Part# 851-810-002) and AC power cord (Part# 1-974028-025) sold separately
CK3X Non-Incendive, Wi-Fi (80211a/b/g/n), Near-Far 2D Imager, Windows Embedded 65, 256MB RAM/1GB Flash, Numeric Keypad, Non-Incendive, Bluetooth Includes Battery And ICP application software. Interface Cables And Charging Cradle Sold Separately.
CK3X Non-Incendive, Non-Incendive Mobile Computer, Alphanumeric Keypad, EX25 Near-Far 2D Imager, Includes Battery, 802.11A/B/G/N, Bluetooth 1GHz Processor, Windows Embedded 6.5, Standard Software and Client Pack.

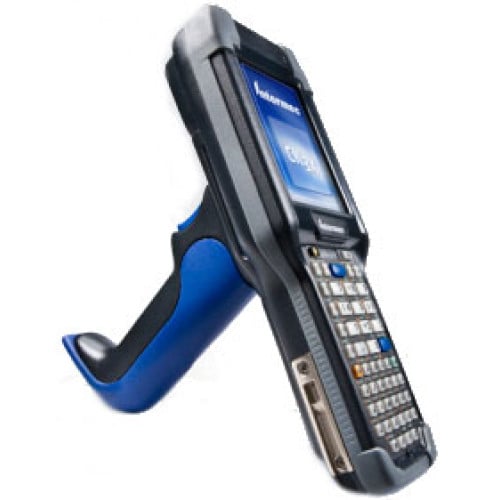

Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.
â€¢ 8.9 cm (3.5 in) Transmissive QVGA â€¢ 240 x 320 pixels â€¢ 65,536 (16 bit RGB) Colors â€¢ High-Durability Touch Screen â€¢ LED Backlight
Drop Survival:Â 1.5 m (5 ft.) to concrete per MILSTD 810G across operating temperaturesÂ Tumble Specification:Â 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification Electrostatic Discharge:Â +/- 15 kV air discharge, +/- 8 kV direct discharge Humidity:Â Non-condensing, 95% Operating Temperature:Â -10Â°C to +50Â°C (+14Â°F to +122Â°F) Charging Temperature:Â +5Â°C to +35Â°C (+41Â°F to +95Â°F) Storage Temperature:Â -20Â°C to +70Â°C (-4Â°F to +158Â°F) Rain and Dust Resistance:Â IP54, category 1
Both keypad options feature backlit hard keycaps with laser-etched legends
Memory and Storage
Flash ROM:Â 1GB Flash Memory/Storage Extensions:Â Customer-accessible micro-SD slot for removable memory cards up to 32GB RAM Memory:Â 256MB RAM
Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Intermec HTML5 Browser (available via download)
Length:Â 21.6 cm (8.53 in) Width:Â 8.3 cm (3.29 in) 6.1 cm (2.4 in) - grip area Depth:Â 3.6 cm (1.42 in) Weight:Â 499 g (17.6 oz) with 5.1Ah battery
Battery Type/Supply:Â Battery Pack: Removable, rechargeable â€¢ Included - User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)Â â€¢ Optional - Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack â€¢ Optional - Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)
Scan Engine Options:Â EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.
EX25 near/far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User's Manual for depth of field performance.Â
